$950.00

C-1 Aircraft Maintenance Platform

Our C1 Aircraft Maintenance Platforms are a staple in the industry due to their high versatility. The straddle base allows you to position the stand over parts or equipment on the ground, and also allows for easy tilt and roll mobility. The carbon steel construction and heavy duty 300 lbs. capacity ensures this helicopter service platform will last for years to come with little or no maintenance.

**Please be aware that all prices do NOT include freight. We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at (904) 878-7664 or email us at sales@fiber-strong.com with your ship to zip code for a complete quote including your freight cost.

If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
Upload a specification sheet, drawing or a rendering for your estimate.

C-1 Aircraft Maintenance Platform

NSN# 1730-00-395-2781 MODEL# FAI-C1

(Also referred to as Model# 48E16919 or Model# TR5SFH30GS-SP)

 Compatible with ALL helicopter models, including: Augusta, Astar, Bell, Eurocopter, Sikorsky, Hughes, Hummingbird, Kawasaki, and Schweiser.

 Our C1 Aircraft Maintenance Platforms are a staple in the industry due to their high versatility. The straddle base allows you to position the stand over parts or equipment on the ground, and also allows for easy tilt and roll mobility. The carbon steel construction and heavy duty 300 lbs. capacity ensures this helicopter service platform will last for years to come with little or no maintenance.

Features:

 • Carbon steel construction  • 40"W Serrated treads
 • Platform size: 50"H x 40"W x 21"D  • (2) 5" Rigid casters on rear
 • (2) Rubber feet on front  • Straddle base style construction
 • 30"H handrails  • Gray enamel paint
 • Ships all welded  • OSHA and ANSI compliant design

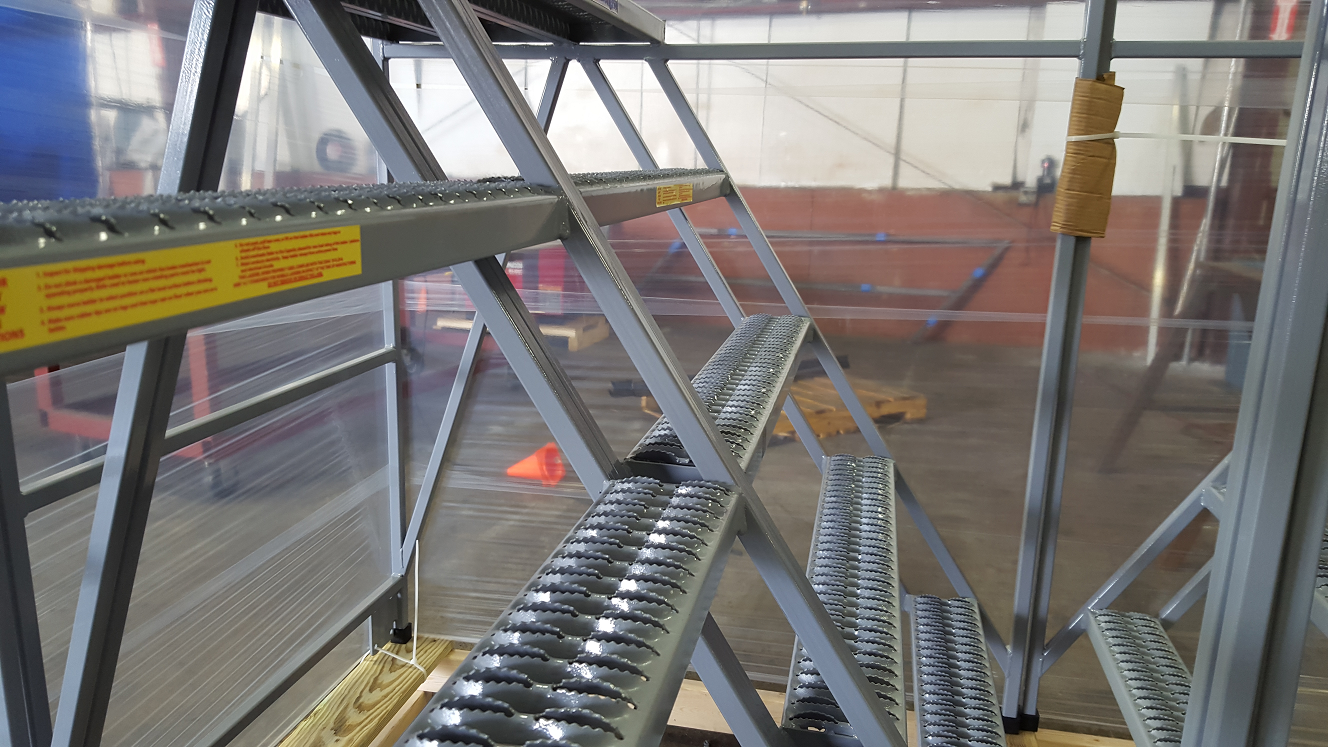

Serrated Tread:

c-1 Maintenance Stands Tread Close Up

NSN# 1730-00-395-2781 Features

MRC Parameter Characteristics
 AGAV  End Item Identification  F-16A/B/C/D aircraft
 AMDA  Locking Device  Not included
 APCS  Adjustability  Nonadjustable
 AQJL  Floor Material  Steel
 AYJW  Rolling Element Type and Quantity  2 wheel
 CHJH  Working Level Dimension  4 ft working level height
 CHJJ  Working Platform Quantity  1
 CHJL  Ladder  Included
 CHJM  Platform Safety Guard  Included
 CHQN  Safety Guard Type  Fixed
 CHQP  Maximum Overall Length  48.000 inches
 CHQQ  Maximum Overall Width  45.000 inches
 CHQR  Maximum Overall Height  84.000 inches
 FEAT  Special Features  Wheel base 45 inches;tubular framework
 RDAL  Reference Data and Literature  35A4-3-16-3
 ZZZT  Nondefinitive Spec/STD Data  C1 type



C-1 Aircraft Maintenance Platform Technical Specification

National Stock Number:
1730-00-395-2781

Federal Supply Class:
1730

National Item Identification Number:
003952781

Description:
C1 Type Maintenance Platform

Detail:
AN ITEM OF EQUIPMENT WITH SMALL FLOORED AREA(S) SUPPORTED BY SCAFFOLDING OF METAL OR WOOD FRAMEWORK, EITHER PORTABLE OR STATIONERY. FOR USE IN REPAIRING, CLEANING, INSTALLING AND INSPECTION OF PROPERTY, MACHINERY AND EQUIPMENT ABOVE THE GENERAL FLOOR LEVEL.

Product Pictures: (Packaged for shipping at our production facility)

c-1 Maintenance Stands Packaged  c-1 Maintenance Stands Packaged  c-1 Maintenance Stands Packaged

 Here FiberStrong Composites, it is our goal to provide our customers with a aircraft support equipment suited to the needs of your facility, and it is our policy to go above and beyond to ensure customer satisfaction. We have a unique perspective on your aviation maintenance requirements because with over 9 years of hands-on experience in the aviation arena, we have an exclusive understanding of your needs. We have extensive knowledge and background in aviation from both a military and a civilian perspective, making us qualified specialists with vision enough to explore original solutions for your aircraft maintenance needs.

 The C1 Aircraft Maintenance Platform plays a vital role in the aviation industry ensuring the utmost safety for the mechanics. FiberStrong has a repeat of clientele that have been extremely satisfied with these stands and have referred others in the industry to us so that we may accommodate them in making their aviation maintenance areas safe, efficient, and productive. We are dedicated to developing the most innovative aircraft maintenance platforms through research, engineering, manufacturing, and marketing of the finest materials available. All of our products may be modified or completely custom designed to suit your needs.

Please call for additional options or custom design.
FiberStrong Composites is your total composite access solution provider.
We can customize a C-1 Aircraft Maintenance Platform to your specific needs.
Please call (904) 878-7664 or toll free (844) 727-8263
Fax us your request at (888) 909-6780.



To learn more about any of the products we offer, or to discuss your custom design needs with one of our expert staff, get in touch with FiberStrong Composites today. We can be reached through our contact page or by calling 904-878-7664, or toll-free at 844-727-8263.
